Self-hosted AI Workflow Visualization with LangGraph-GUI & CrewAI-GUI

slide link: https://homun.posetmage.com/Content/Slides/2025/COSCUP/

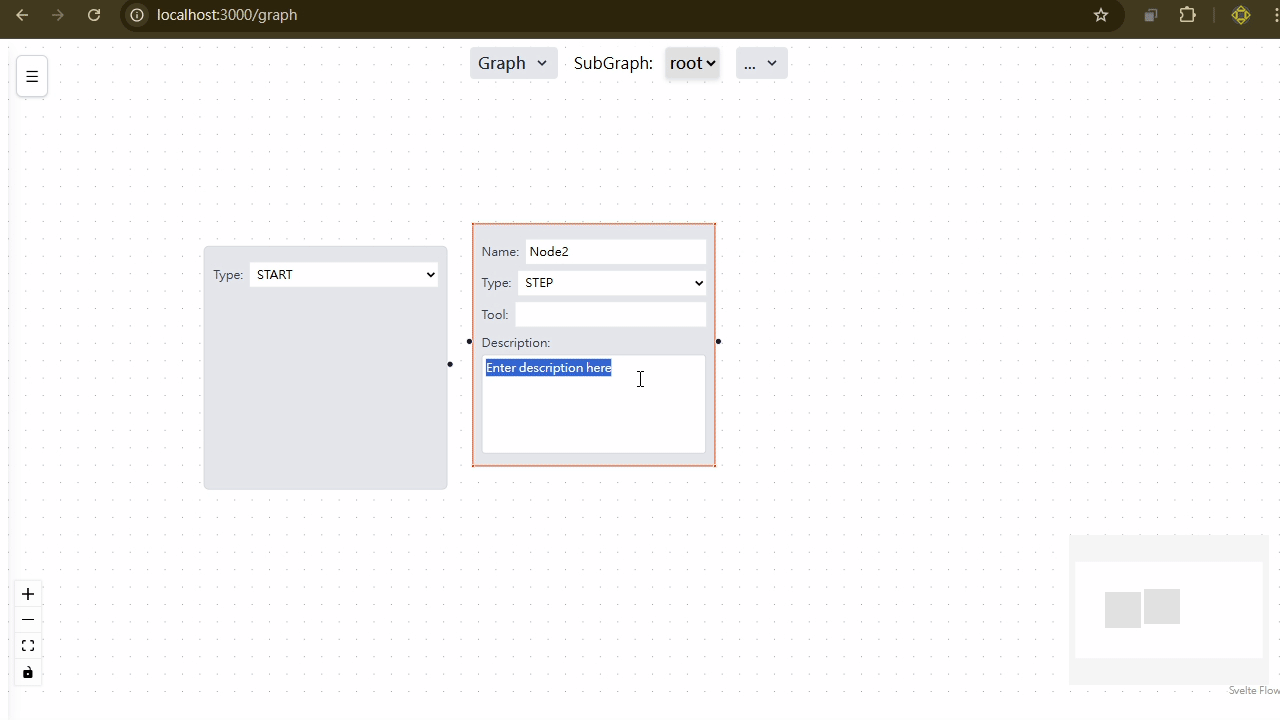

LangGraph-GUI Demo

  • visulization, low code, easy to prompt
  • simple for dev tools

Motivation & Goals

  1. Local GPU Support (e.g., Ollama)
  2. Full Customization of UI and backend logic
  3. LangGraph Compatibility for flexible graph-based workflows
  4. Easy Deployment with Docker Compose and Kubernetes

other tool usually limited shape, you cannot drag some node to any node you want

  • Other similar software
    • dify
      • https://framerusercontent.com/images/7IPPObp2xkFVLH1IyW9QvFQ0a2I.gif
    • coze
      • https://pbs.twimg.com/media/GP5rEiZaEAAUqWu
    • n8n
      • https://raw.githubusercontent.com/n8n-io/n8n/master/assets/n8n-screenshot-readme.png

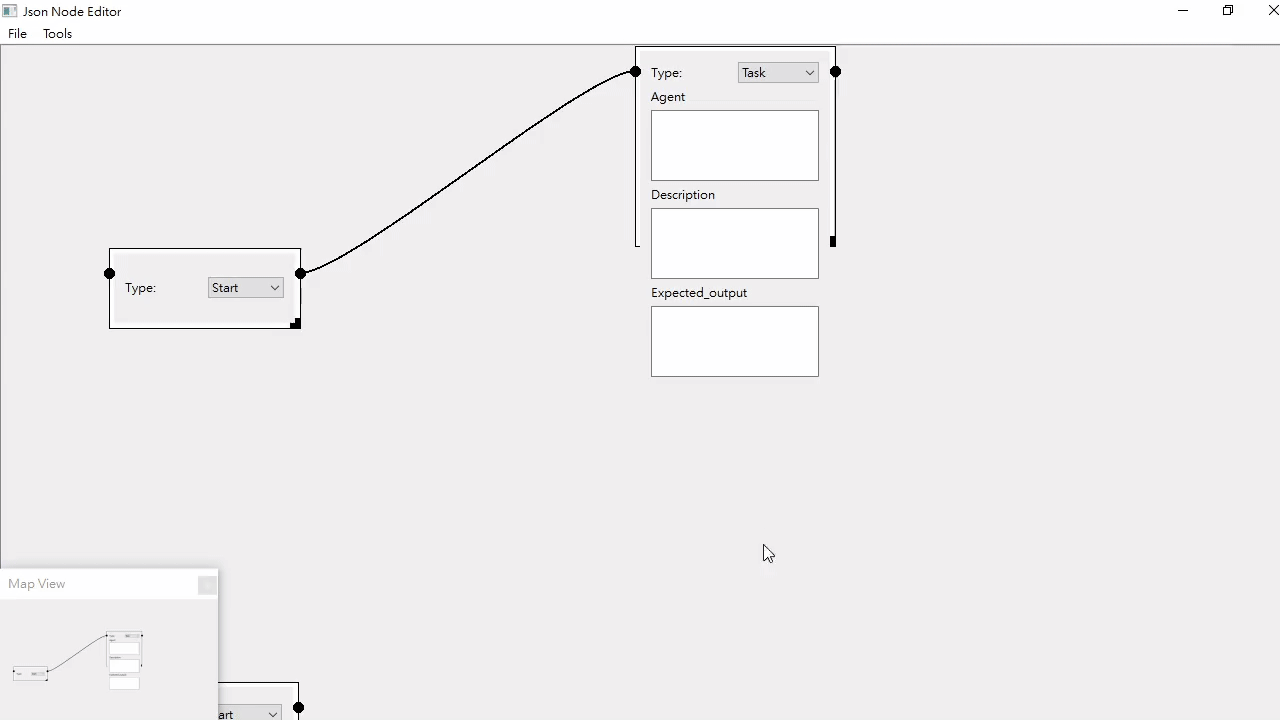

First attempts - CrewAI-Qt

Build CrewAI-GUI with pyside6

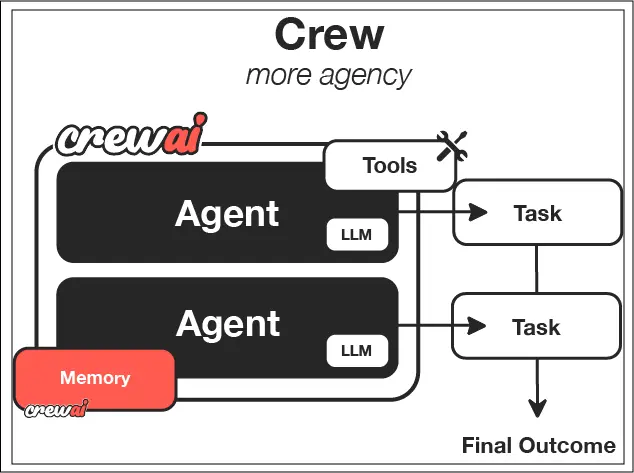

  • Pros of CrewAI :
    • Beginner-friendly introduction to AI agents
    • LangGraph, LangChain resource not friendly to green hands

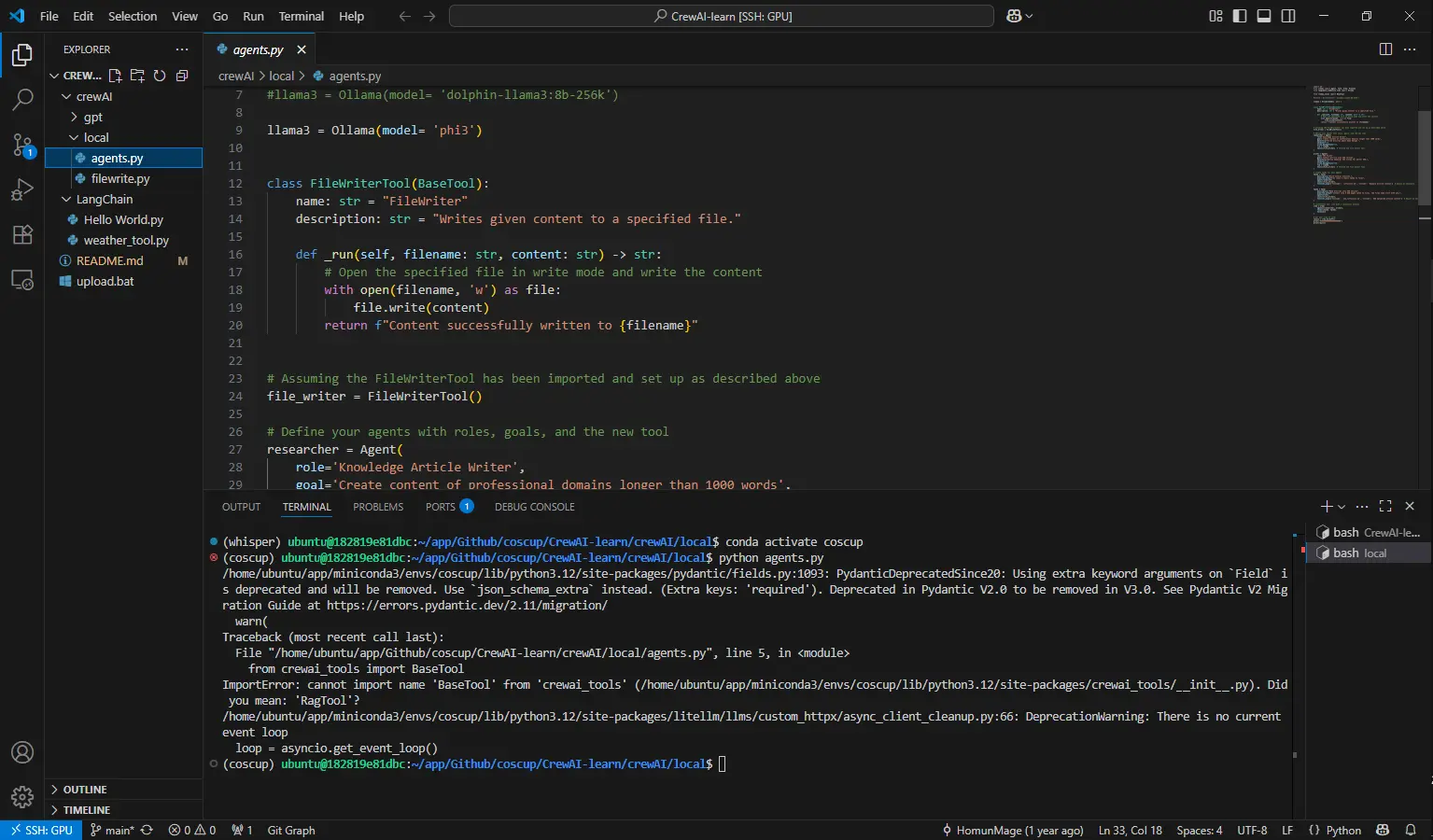

Why Not CrewAI?

  • Cons of CrewAI :
    • Abstracts too many steps (limited visibility)
    • Frequent updates may breaks existing code

Abadon PyQt

  • Containerization Challenges: Qt-based UIs proved unreliable when deployed in Docker/Kubernetes.
  • Frontend Modernization: Switched from PySide6 to a React-based UI for faster iteration and broader ecosystem support.

  • Architecture Validation: Demonstrated our JSON-contract design lets us swap out frontends with zero backend changes.

  • frontend change:

-> -> ->

Why Not LangChain?

Both langchain and crewai are Fragility

  • Not Modularity: Tool usage is isolated, hard to combine
  • Fragility: Breaking changes across versions
  • Bad Abstraction: Layers obscure data flow

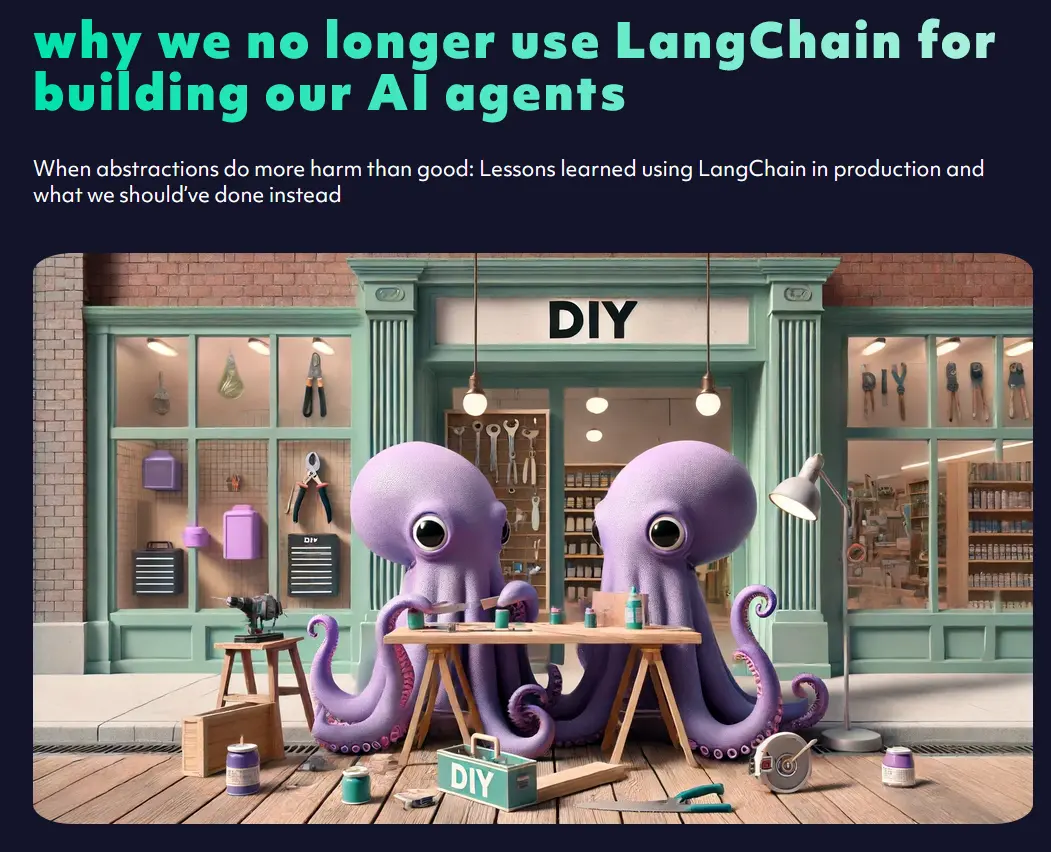

why we no longer use LangChain for building our AI agents

Why Choose LangGraph

  • Pros of LangGraph:
    • Graph-Centric Design: Focus on nodes and edges
    • Model-Agnostic: Plug in any LLM or agent
    • Composable: Mix-and-match components seamlessly
  • My core recommand reason:
    • state machine concept align to LLM
    • very native
    • elegant, can loop, condition to change branch
  • Learning Resource:

moreover we can do graph in graph like small agent but just use origin keywords

Design of LangGraph-GUI

  1. JSON Contract: text based, easy to decouple
  2. Frontend Agnostic: ReactFlow, SvelteFlow, or custom
  3. Backend Flexible: Python, etc.
  4. Extensible: Add custom properties via ext: fields

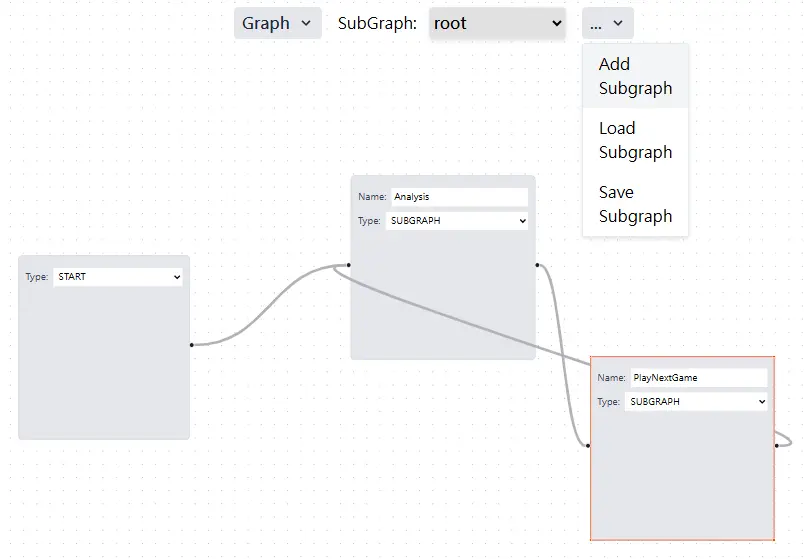

  • other design: subgraph:

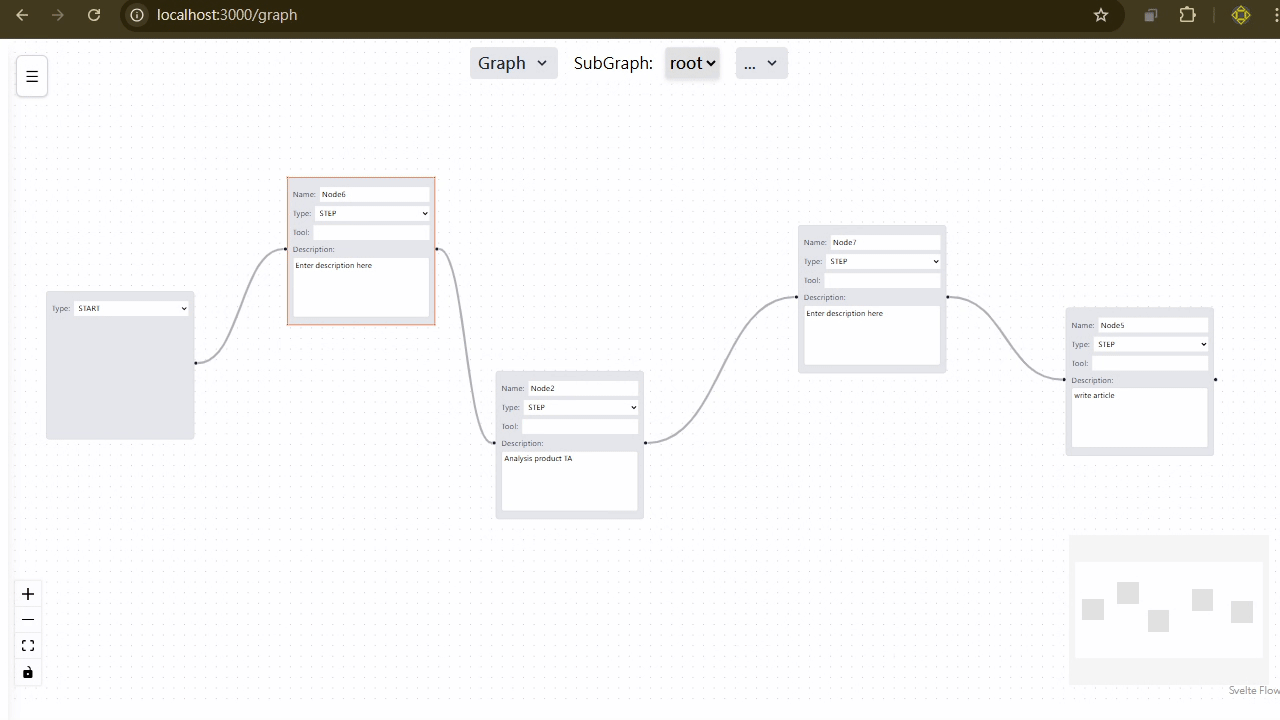

Extend Ability

python backend

  • Framework Upgrade: Started with Flask for its simplicity, then migrated to FastAPI for async support and superior performance.
  • Declarative Routing: Leveraged Python decorators to keep endpoint definitions clean and self-documented.
  • Modular Extensions: Easy to add features—JWT authentication, per-user workspaces, custom middleware.
  • Developer-Friendly: Clear JSON contract and pluggable modules make onboarding and iteration a breeze.


image source: https://www.imaginarycloud.com/blog/flask-vs-fastapi

DevOps

  • Support Kubernetes
    • Ollama in NV-container
  • Support Docker Compose
    • easy for local debug

Thank You!
