Use SvelteFlow to Create AI Workflow Visualized Node-Edge Graph GUI Editor

What I want

like dify, Coze, n8n…..

and self-host, more flexibity, use langgraph

  • dify
  • coze
  • n8n

The Core Problem: Why Build Another One?

Although existing platforms are powerful, they commonly suffer from several pain points:

  • Vendor Lock-in: Core logic is deeply integrated with specific cloud services, making migration difficult.
  • Limited Extensibility: Hard to easily integrate custom tools or models.
  • Opaque Logic: Lack of full visibility into the internal workings of the agent, making debugging challenging.
  • Cost: Large-scale usage in production environments can become prohibitively expensive.

Why Is Visual Programming Needed?

  • Lower the Technical Barrier
  • Improve Development Efficiency
  • Facilitate Team Collaboration
  • Reduce Configuration Errors

Time Flies……

OpenAI AgentKit

Similar LLM libs

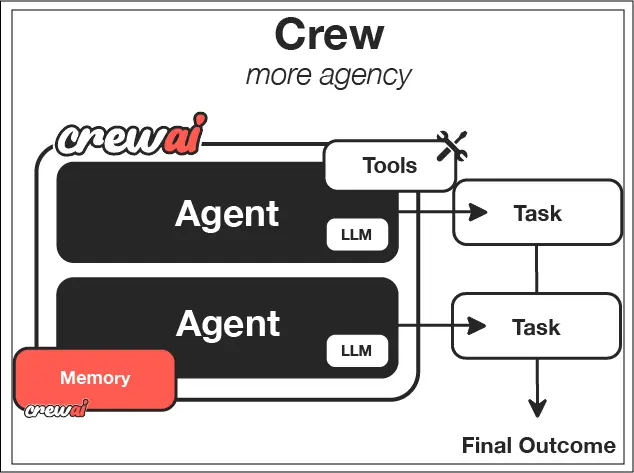

Feature CrewAI LangChain LangGraph
Graph Support ❌ Limited ⚠️ Linear chains ✅ Full graphs
Loops ❌ No ❌ No ✅ Yes
Conditions ❌ No ⚠️ Limited ✅ Yes
Multi-agent ✅ Yes ⚠️ Basic ✅ Yes
GUI Support ❌ No ❌ No ❌ No

all of these not have official GUI, we need create by ourself.

core design

use Nodes as SSOT to represent Edges

Evolution: From PyQt to Web-Based Solution

CrewAI-GUI-pyQt

Limitations:

  • Desktop-only deployment
  • Limited web integration
  • Harder to collaborate
  • Less familiar developer ecosystem

Technology Stack

  • Frontend:
    • Svelte
    • react (early version)
  • Backend:
    • FastAPI
    • flask (early version)
  • Infrastructure
    • Kubernetes
    • Docker Compose

backend API

If your backend have JWT, you can switch by username

post /clean-cache/{username}
get /download/{username}
post /upload/{username}
post /run/{username}

Run Graph Button

post /upload/{username}
post /run/{username}

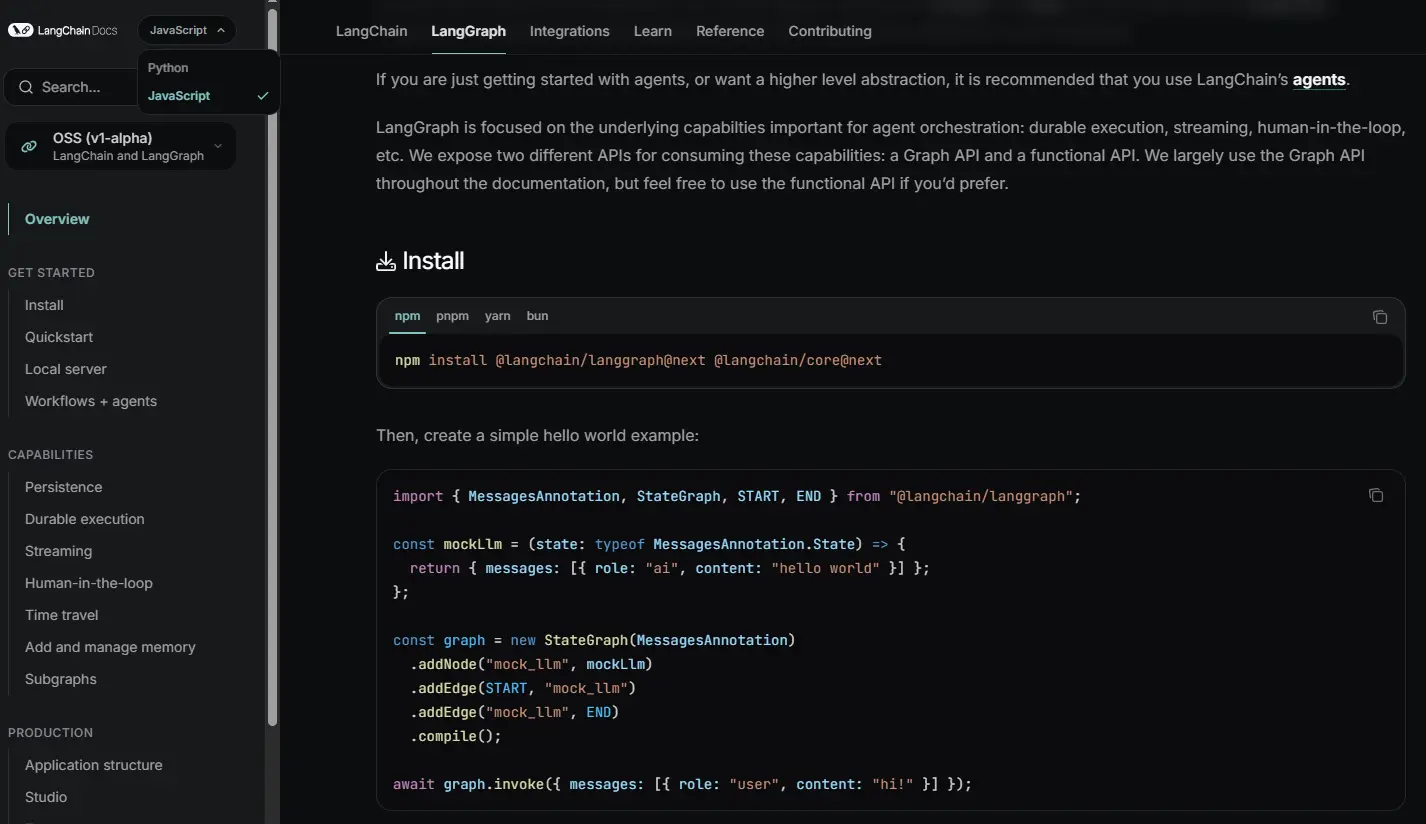

LangGraph.js

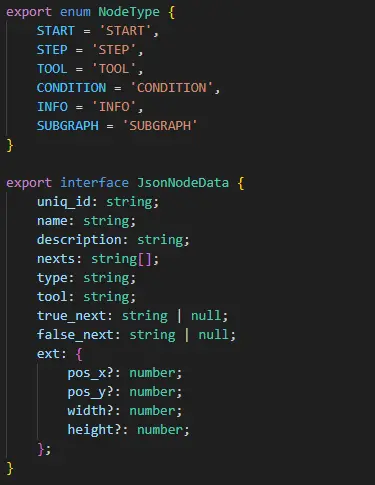

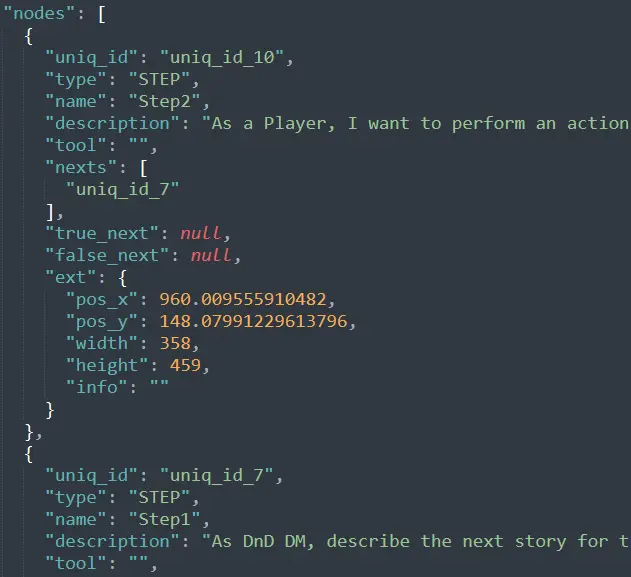

Graph Data Strcture Design

Why xyflow

xyflow is mature js graph library (svelteflow, reactflow)

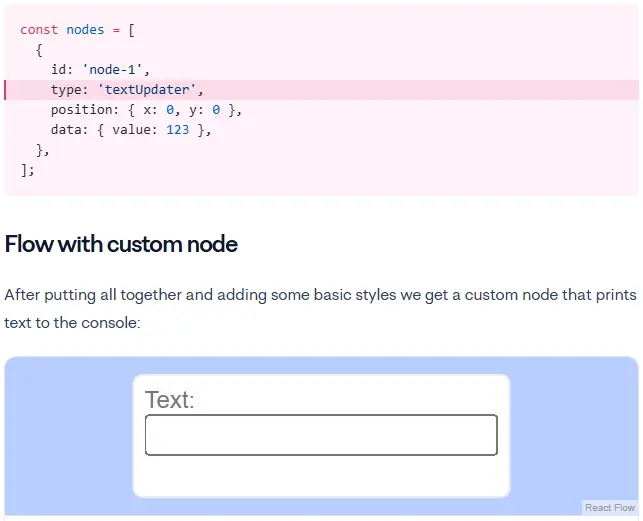

Custom Nodes

no code

Custom Nodes

low code

Why ReactFlow

  • React have large ecosystem and community
  • Graph GUI with node edge design
  • flexibity enough for make it as editor

Benefit from ReactFlow

custom edge, custom nodes

The Jourery of ReactFlow

LangGraph-GUI 1.0 using reactflow

  • Hard to make SSOT
    • ReactFlow not support signal-like logic
    • hard to sync Redux and React Context
    • data update flow cannot align SSOT design
    • not only nodes, but also edges need update seperatly
  • Code lines more longer

learn lessons from ReactFlow

Fixing typing content in node too early

  • React’s onChange fires too early → saves unfinished text.
  • only save after click other place: onBlur

Fixing Japanese Input in React (IME Support)

  • Japanese/Chinese/Korean use IME (Input Method Editor).
  • Example: typing “日本” → React may save "niho" before confirmation.
  • need const changeBuffer = useRef({})

JS → TS

  • As projects grow, plain JavaScript becomes harder to manage. TypeScript helps us scale.
  • unclear data structures, harder to refactor

bothered by TS

"scripts": {
  "lint": "prettier --write . && prettier --check . && npx eslint . --ext .svelte,.svelte.ts,.svelte.js --fix",
},

any will through warning, this is annoying

// lib/json.ts

export type Json =
  | string
  | number
  | boolean
  | null
  | Json[]
  | { [key: string]: Json };

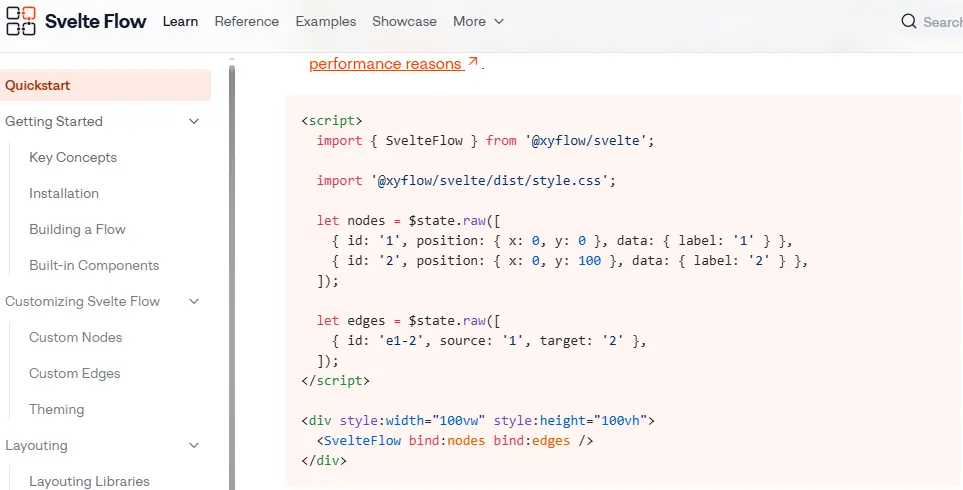

Why SvelteFlow

  • Svelte 5 using signals
    • code numbers usually fewer than react
    • easy to pass computed runes
  • SvelteFlow 1.0 highly affinity svelt 5 rune, signals
  • fewer and more beautiful lines

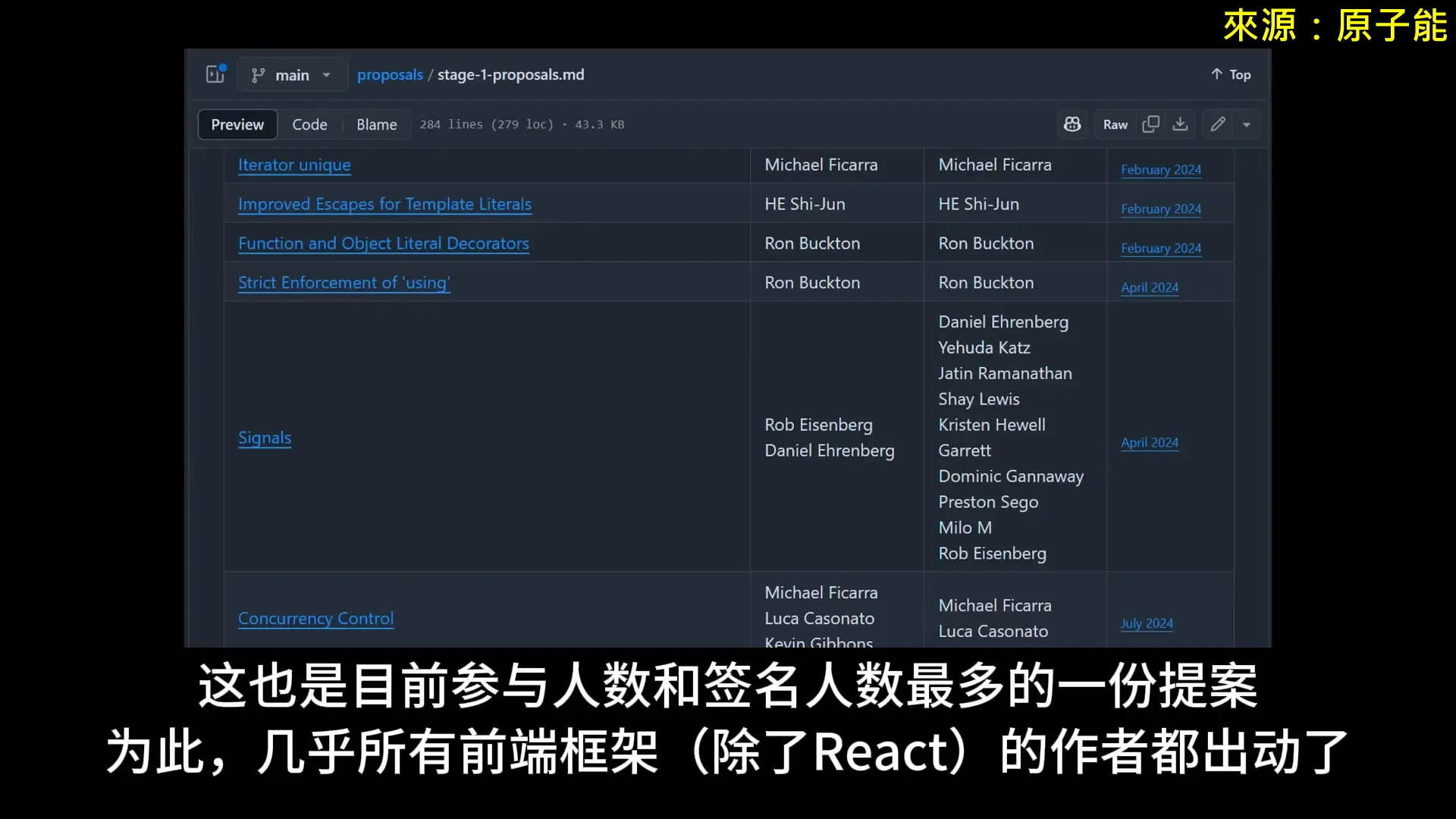

Signals

Signals

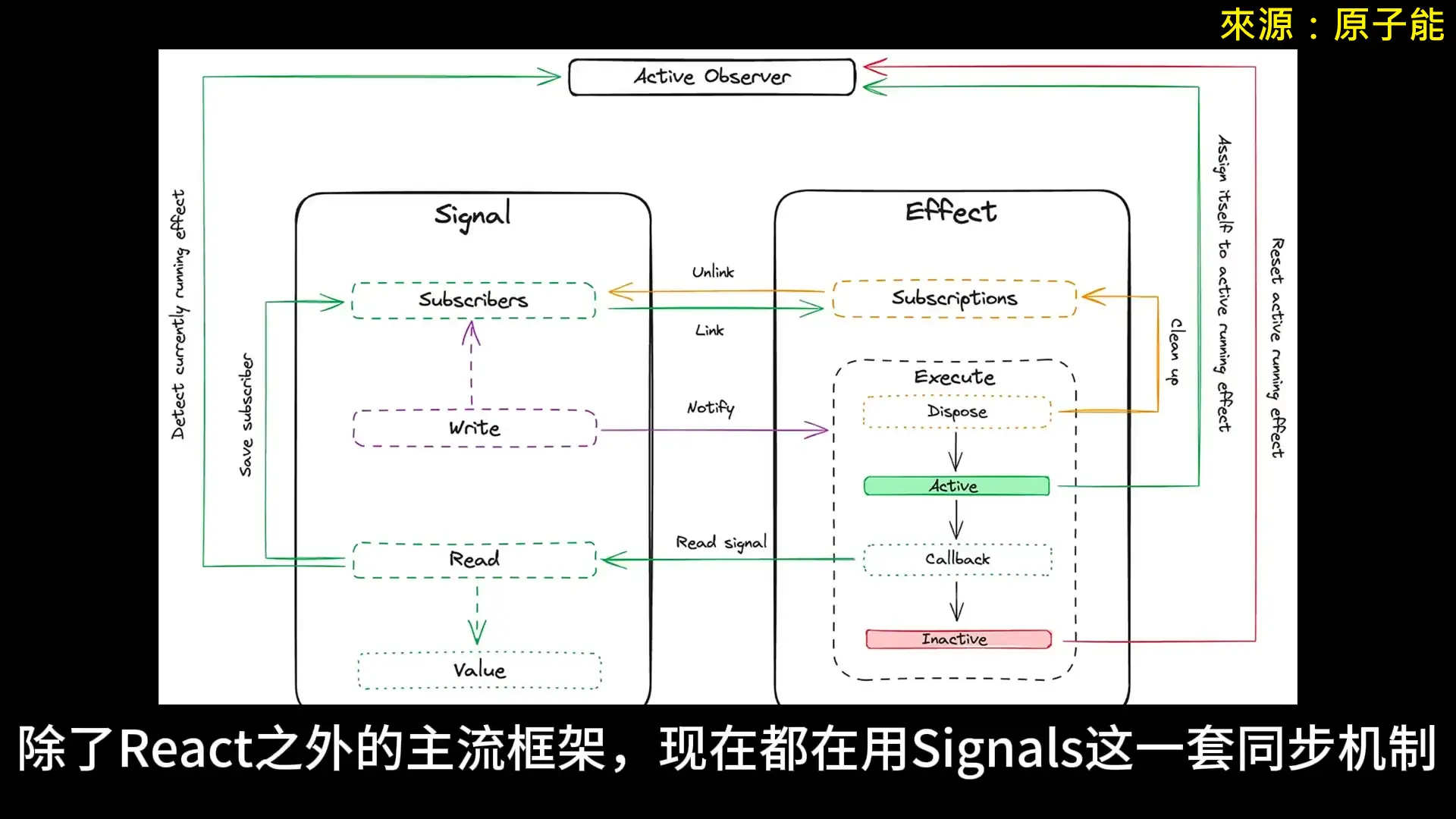

  • Reactive Value
  • A signal is essentially a wrapped value. Anywhere it is read, dependencies are automatically subscribed.
    • Updating a signal → automatically notifies its dependents → triggers UI updates or recomputations.
  • Computed Signals (Derived Values)
    • A computed signal is a value derived from other signals.
  • Effect / Reaction (Side Effects)
    • When signals change, they can trigger effects such as updating the DOM or calling an API.
Framework / Library signal computed effect
Solid.js createSignal createMemo createEffect
Angular (v16+) signal() computed() effect()
Preact Signals signal() computed() effect()
Vue 3 ref / reactive computed watchEffect
Svelte 5 $state / writable store $derived / derived store $effect / $: declaration

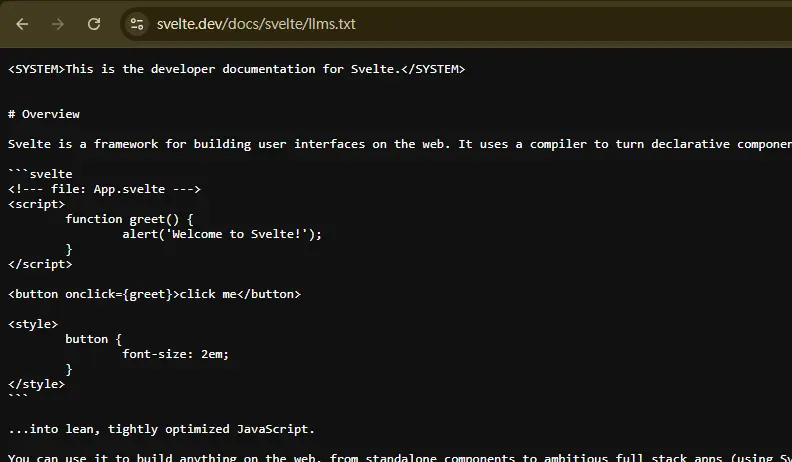

llms.txt

  • With llms.txt, LLMs know:
    • where to look (core guides, API, examples)
    • what to skip (noise, menus, ads)
    • like robots.txt but for AI
  • For Svelte devs:
    • Signals make UI state simple
    • llms.txt makes docs simple for AI

SvelteFlow 1.0 release

xyflow/svelte 1.0.0 released at 2025 May 14

fully support rune

Svelte is Elegant

sample code

signal chain: Node(SSOT) –> Edge –> SvelteFlow

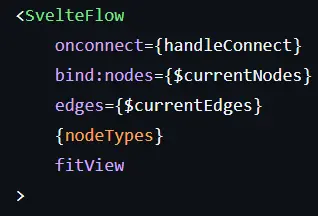

bind:nodes={$currentNodes}
edges={$currentEdges}

Svelte is Elegant (cont.)

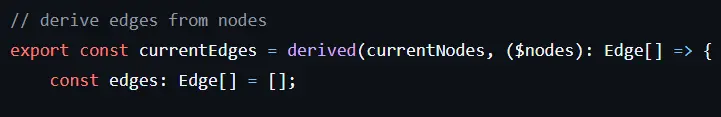

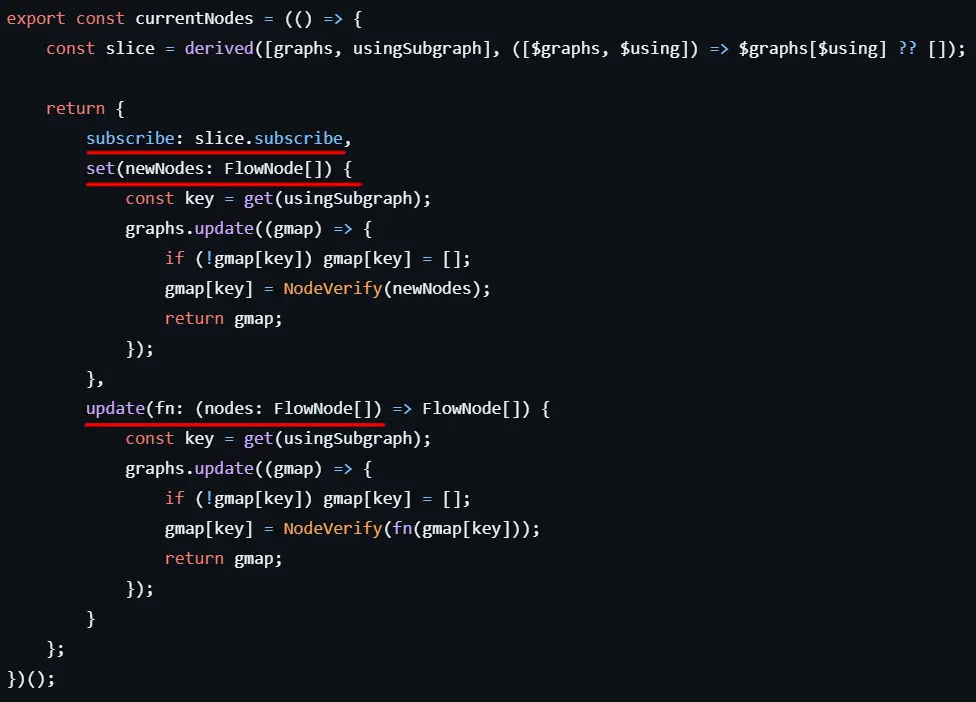

define your own signal object:

Simple Demo

Extend Demo

Extend Demo

Loading content…

END

Thank You
